Triumph Bonneville T100 Hagon Shocks 34045
These Hagon shocks are custom made to your specific needs to make your riding experience more comfortable and will improve handling.
Adjustable compression and rebound damping will smooth out the ride. Spring pre-load adjustment help when riding with a passenger.
Select your style:

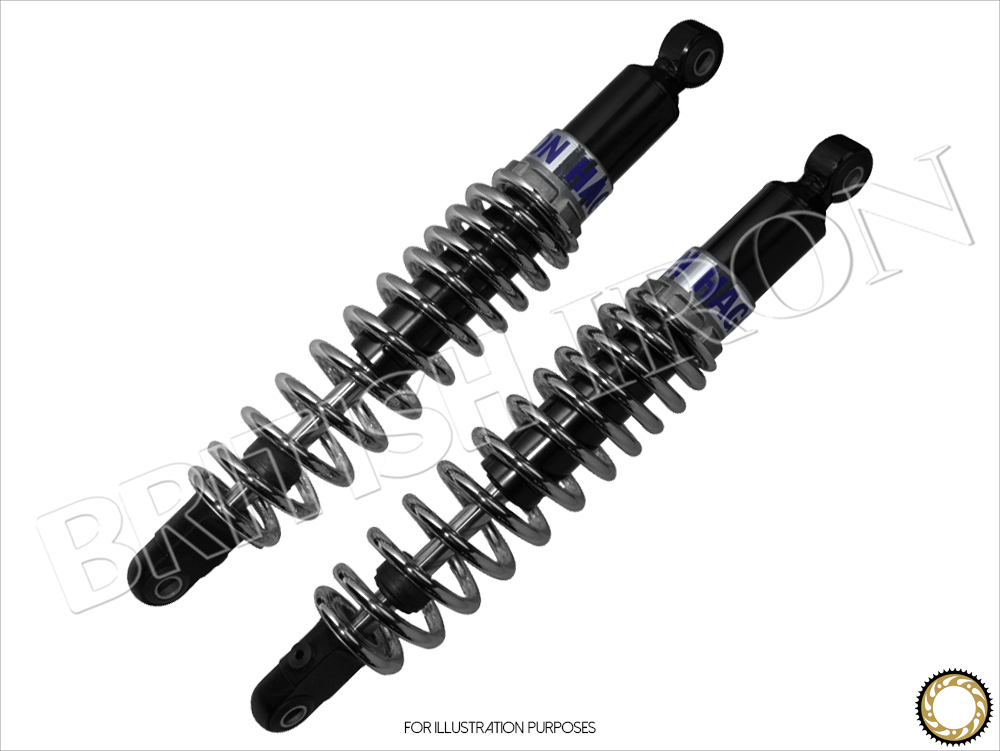

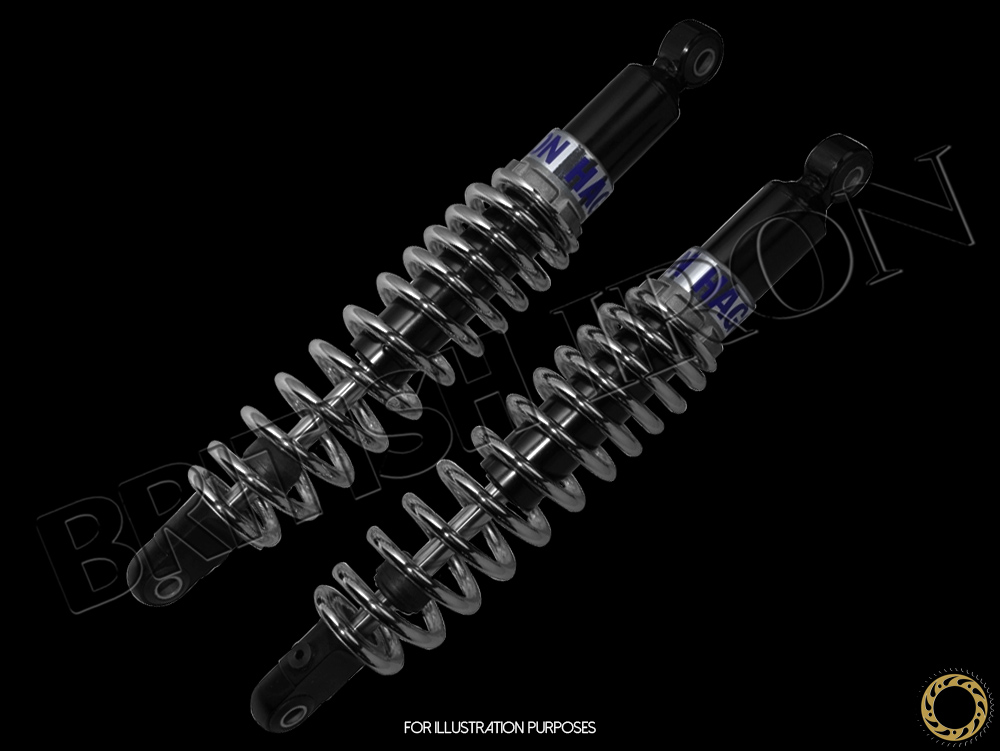

- 34045TTSA: Type 2820 Adjustable Shock, Black painted 28mm sealed damper unit with standard chrome spring (SA)

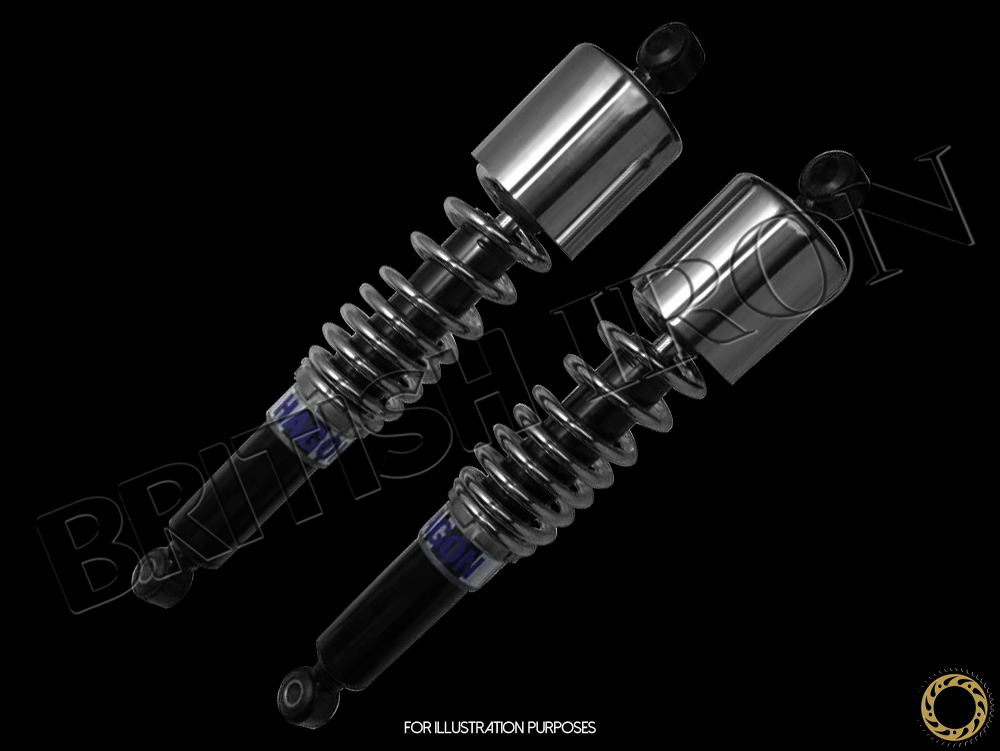

- 34045SA1: Classic Shock – Classic I Standard Chrome Spring Short Polished Stainless Cover, Black painted 28mm sealed damper unit with standard chrome spring (SA) and short polished stainless steel top cover

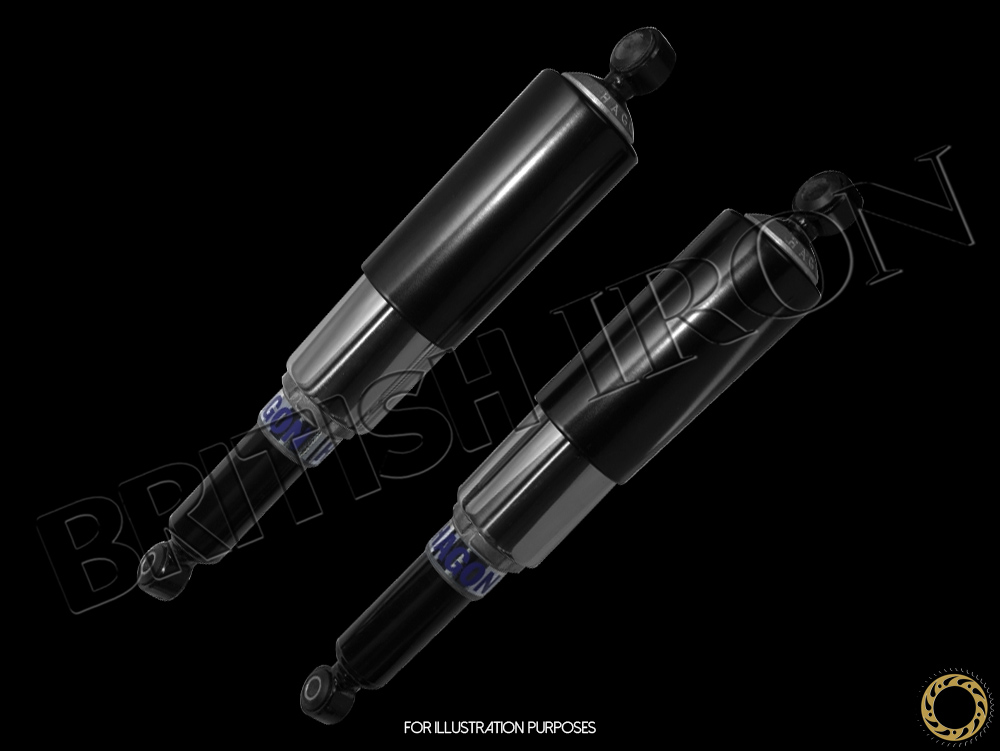

- 34045CL3: Classic Shock – Classic III Full Black and Polished Covers, Black painted 28mm sealed damper unit, fully shrouded with gloss black powder coated stainless steel top cover and polished stainless steel lower cover
Hagon 34045 rear shocks are a direct-fit twin-shock upgrade for the air-cooled Triumph Bonneville and Bonneville T100 with spoke wheels, from the 2001 790cc Bonneville through the last 865cc air-cooled T100 in 2016. They are about 340mm eye to eye, the same as the original shocks, so ride height and handling geometry don’t change. Hagon makes them at its own factory in Essex, England, and supplies them as a complete pair with mounting bushes. Each pair is built with a spring rate matched to your rider, passenger, and luggage weight. That gives a smoother ride and better rear grip than the original preload-only Kayaba shocks.
There are three styles. The 2820 Adjustable (34045TTSA) adds damping adjustment. The Classic I (34045SA1) and Classic III (34045CL3) pair Hagon’s sealed damper with traditional British looks, from a short polished top cover to fully shrouded black and polished covers that suit the T100’s 1960s styling.
Choose Your Hagon 34045 Style
- 34045TTSA – Type 2820 Adjustable Shock: Black painted 28mm sealed damper with a standard (SA) chrome spring. Wide-ranging single-circuit progressive damping adjustment with automatic compression/rebound balance, plus 3-position spring preload adjustment by enclosed cam. Supplied with mounting bushes, tools, and instructions for spring and damping adjustment. Designed to be fitted with the damping adjuster at the bottom.
- 34045SA1 – Classic I: Black painted 28mm sealed damper with a standard (SA) chrome spring and a short polished stainless steel top cover. 3-position spring preload adjustment by enclosed cam. Supplied with mounting bushes and a C spanner for spring adjustment.
- 34045CL3 – Classic III: Black painted 28mm sealed damper, fully shrouded with a gloss black powder-coated stainless steel top cover and a polished stainless steel lower cover. 3-position spring preload adjustment by enclosed cam. Supplied with mounting bushes and a C spanner for spring adjustment.
Why Upgrade to Hagon Shocks
- Built for your weight: tell us your rider, passenger, and luggage weights and how often you ride two-up. Hagon then builds the pair with the right spring rate for how you actually ride.
- Progressive springs: the spring rate rises as the shock compresses. It stays supple over small bumps and gets firmer for big hits and heavy loads.
- Sealed 28mm damper: oil and nitrogen gas share one sealed chamber. Fewer parts and wear points make for consistent, low-maintenance damping on the road.
- Stock length, better control: at about 340mm, the 34045 keeps the Bonneville’s standard ride height and seat height while improving how the rear end handles bumps and loads.
- Easy preload adjustment: the 3-position enclosed cam lets you add preload for a passenger or luggage in seconds.
- Damping adjustment (2820 only): one adjuster sets compression and rebound together, so you can fine-tune comfort and control.
- British made since 1958: Hagon Products was founded by speedway and grasstrack champion Alf Hagon and still builds every pair to order in the UK.
Fitment
- Triumph Bonneville 790 and 865 (air-cooled) with spoke wheels, 2001–2008, carbureted and EFI
- Triumph Bonneville T100 865 (air-cooled), up to 2016, carbureted and EFI, including spoke-wheel special editions
- Eye-to-eye length: approximately 340mm (stock length)
Not for these models: The 2009–2016 Bonneville and Bonneville SE with 17-inch cast wheels use a shorter shock. For those bikes, choose Hagon shocks PN 33055 for the 2009–2016 Bonneville SE and EFI. The air-cooled Scrambler takes the longer Triumph 900 Scrambler Hagon Shocks PN 36009, and the Bonneville America cruiser takes Triumph Bonneville America Hagon Shocks PN 32037. The 2016-on liquid-cooled Bonneville T100 and T120 use different shocks. Contact us for a custom Hagon order.
How to Order
- Choose your style: 34045TTSA, 34045SA1, or 34045CL3.
- Fill in the Hagon Shocks Order Details form below with your rider, passenger, and luggage weights in pounds, and how often you ride with a passenger.
- Hagon builds your pair with the right spring rate and ships them ready to fit.
Hagon shocks are built to order for your bike and weight, so please check your details before you submit them.
Installation Tips
- Support the motorcycle securely on a lift or paddock stand with the rear wheel just off the ground before you remove the original shocks.
- Change one shock at a time so the swingarm stays in position.
- On the 2820 Adjustable, fit the shocks with the damping adjuster at the bottom, as Hagon specifies.
- Tighten the mounting bolts to the torque in your Triumph factory service manual.
- Set both shocks to the same preload position, and the same damping setting on the 2820. Add preload for a passenger or luggage.
Related Parts for Your Bonneville
- Triumph Bonneville Scrambler (Air Cooled) Progressive Fork Springs PN MBI-11-1126: balance your new rear suspension at the front
- Triumph Bonneville / Thruxton / Scrambler / T100 Fork Boot Gaiter Set
- Suspensions, Forks & Shocks: more suspension parts for your Triumph
Learn more about the manufacturer at Hagon Shocks UK, or browse all Hagon shocks at Modern British Iron.
______________________
Frequently Asked Questions
What Triumph models do Hagon 34045 shocks fit?
Hagon 34045 shocks fit air-cooled Triumph Bonneville and Bonneville T100 models with spoke wheels. That includes the 2001–2008 790cc and 865cc Bonneville and the 865cc T100 up to 2016, both carbureted and fuel-injected.
How long are Hagon 34045 shocks?
About 340mm eye to eye, the same as the original spoke-wheel Bonneville and T100 shocks. Ride height and seat height stay the same.
What is the difference between 34045TTSA, 34045SA1, and 34045CL3?
The 34045TTSA is Hagon’s Type 2820 Adjustable, with an open chrome spring and both damping and preload adjustment. The 34045SA1 Classic I has an open chrome spring with a short polished top cover. The 34045CL3 Classic III is fully shrouded with gloss black and polished stainless covers. The two Classic styles have preload adjustment only.
Which Hagon 34045 shocks have adjustable damping?
Only the 34045TTSA Type 2820 has damping adjustment. One adjuster controls compression and rebound together, with automatic balance between them. All three styles have 3-position spring preload adjustment.
Are Hagon 34045 shocks sold as a pair?
Yes. Every style is supplied as a complete pair with mounting bushes. The 2820 Adjustable also comes with tools and adjustment instructions. The Classic styles come with a C spanner for spring adjustment.
Why do you ask for my rider, passenger, and luggage weight?
Hagon builds each pair with a spring rate matched to the load on the bike. Your weights and how often you ride two-up let Hagon choose the right spring, so the shocks are neither too harsh nor too soft.
Will Hagon 34045 shocks ride better than the stock Bonneville T100 shocks?
Yes, for most riders. The stock Kayaba shocks only have preload adjustment and a one-size-fits-all spring. Hagon’s progressive springs are matched to your weight and paired with a sealed damper, which improves comfort over bumps and keeps the rear tire planted for better handling.
Do Hagon 34045 shocks fit a 2009–2016 Bonneville or Bonneville SE with cast wheels?
No. The cast-wheel Bonneville and SE have a shorter rear shock and less rear travel. Use Hagon 33055 for those models.
Can I fit Bonneville T100 Hagon shocks to my Thruxton or Scrambler?
No. The air-cooled Thruxton and Scrambler use longer rear shocks than the Bonneville and T100. Use Hagon 36009 for the Scrambler, and contact us for the correct Hagon part for a Thruxton.
Do Hagon 34045 shocks fit the liquid-cooled Bonneville T100 or T120?
No. The 34045 is for the air-cooled Bonneville and T100. The liquid-cooled 900cc T100 and 1200cc T120 introduced in 2016 use different shocks. Contact us to custom order the correct Hagon part.
How do I adjust the preload on Hagon shocks?
Use the C spanner, or the supplied tool on the 2820, to turn the enclosed cam to one of three preload positions. Use a higher position for a passenger or luggage, and set both shocks the same.
Which way up do the Hagon 2820 shocks fit?
Hagon designs the 2820 Adjustable to be fitted with the damping adjuster at the bottom.
Where are Hagon shocks made, and what is the warranty?
Hagon Products makes its shocks at its own factory in Essex, England. Alf Hagon founded the company in 1958. All three 34045 styles carry Hagon’s 2-year guarantee.
Follow the instruction in the factory service manual.
